Surface Preparation
The Science of Cleaning
Proper surface preparation is the critical first step to achieving a high-quality paint finish, but experience shows it is rarely easy. Contaminants, residues, and invisible films can all interfere with adhesion, durability, and appearance. Carbit helps customers overcome these challenges by focusing on two essential principles:
Surface Area – Increasing the available surface area improves coating adhesion and long-term performance.
Surface Tension – Controlling surface energy ensures coatings flow, level, and bond consistently.
By combining proven cleaning methods with Carbit’s specialized products, we deliver reliable solutions that remove hidden barriers to adhesion. The result is a cleaner, more uniform substrate—ready for coatings that perform and last.

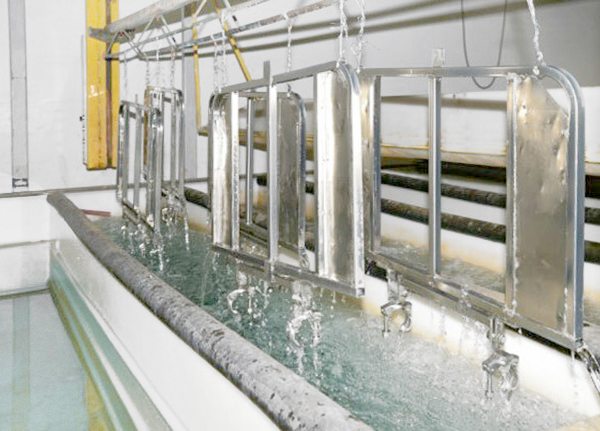

Cleaning and degreasing by dipping parts.
Mechanical Adhesion
Paint adhesion is a mechanical process, similar to the adhesion of glue. Consequently, adhesion improves as the contact area increases. You calculate the area of a two-dimensional plane by multiplying the length by the width, but at a microscopic level, you apply paint to a three-dimensional surface, which is larger when the surface is rough or porous. This means that abrading a smooth surface, such as chrome, increases the surface area and improves adhesion. Likewise, porous surfaces like cast iron naturally have greater surface area and therefore require more paint.
The photo to the right is a 330x magnification of unpainted cast iron, which illustrates the increased surface area. The average size of molecules in a polymer 0.5 - 2.0 microns, much smaller than the size of the surface area shown in the photograph.
330x magnification of unpainted cast iron.
Surface Tension & Adhesion
Surface area alone, however, may not provide the adhesion required if the surface repels the paint, like water beads up on wax. When water beads, the water molecules are more attracted to each other than to the substrate, like water beads on a freshly waxed car. Differences in surface tension can explain why paint bonds to some materials and not to others, and why just increasing the surface area will not prevent the problem.

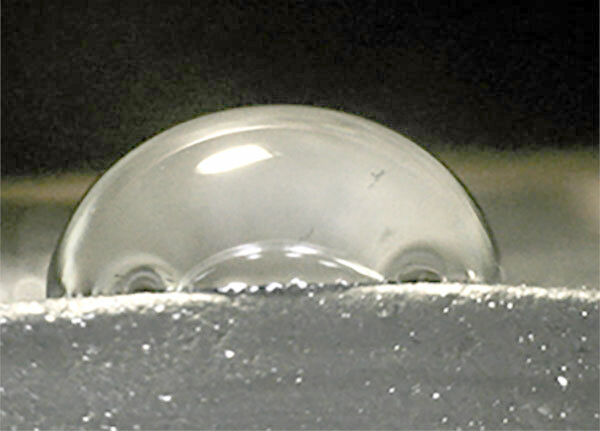

Water beading indicates poor surface wetting.
Adhesion Additives
Manufactured products often contain different materials when assembled. Some areas may be made of aluminum, steel, or even rubber, and the different surface areas and their responses to surface tension in the paint may require an adhesion additive, either added to the paint or applied to the surface to achieve adhesion to all types of material. Carbit helps analyze and solve problems by focusing on the manufacturing process:
- Types of material used
- The interplay between the surface area and the surface tension of the materials
- And process requirements - cleaning, pre-treatments, coating recommendations

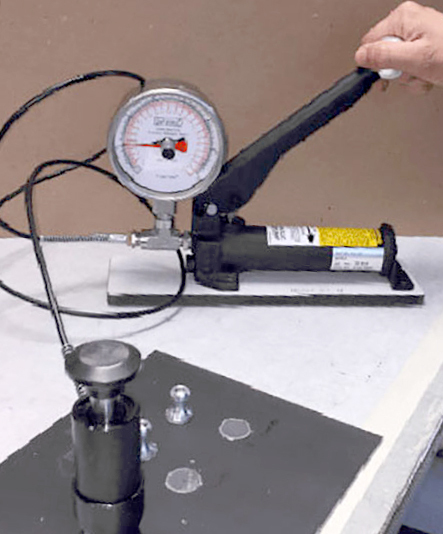

Adhesion is measured by pulling glued dollies off a painted substrate (ASTM D4541).
Carbit Supplies and Serves Industrial Paint Lines:
- Custom Coatings: Specifications, design, formulation, and manufacturing
- Process Improvement: Consulting for paint lines
- Paint Line Support: Audits and painter training
- Lab Services: Testing and reporting, plus surface prep, cleaners, and rust inhibitors
- Technical Field Reps: Training, audits, lab coordination
- Lab Team: Testing, custom formulations, QC, and color matching
- Customer Service & Production: On-time delivery
- Managers & Teams: Continuous improvement and relationship development
